Kingspan Panel System the time and cost effective way of creating walls
Kingspan wall system
Kingspan Wall System. Prefabricated insulated walls saving you time, money and hassle.
Structural Insulated Panels – commonly referred to as SIPs – are a build system incorporating insulation. Insulation is sandwiched between two boards (usually OSB), for a highly insulated build that can be prefabricated off site, and quickly erected on site.
The Kingspan TEK Building System of Structural Insulated Panels (SIPs) have been used as part of many substantial and impressive, innovative domestic and commercial projects throughout the UK.

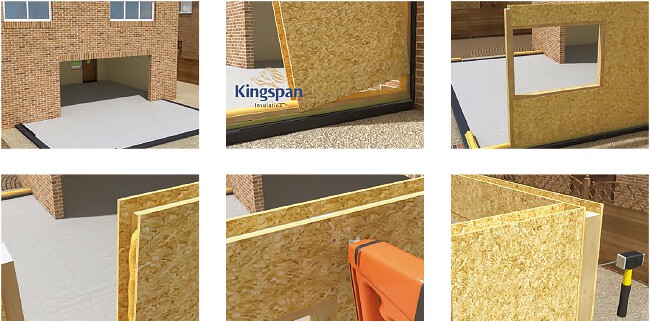

The process
Base is laid to the correct specifications for your Guardian Room.
Wall and sole plates installed ready to receive the Kingspan TEK® panels.
Subsequent panels are installed with specified window and door openings.
Expanding urethane sealant is used between all panel joints for superior airtightness.
Wall panels are securely fixed together with a nail gun.
Corner joints are nailed together to ensure structural strength.

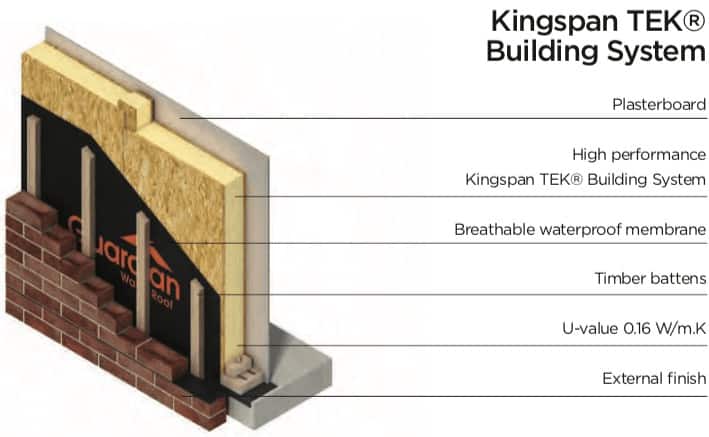

Technical specification
Comprise a thick structural insulated panel (SIP). Panels are connected with a unique jointing system.
Insulation core: 0.023 W/m.K OSB/3 facings: 0.13 W/m.K
15mm Oriented Strand Board type 3 (OSB/3)
High-performance CFC/HCFC free rigid thermoset urethane insulant of typical density 33 kg/m3, manufactured with a blowing agent that has zero Ozone Depletion Potential (ODP)
Manufactured to individual projects – however, the panels have standard dimensions of width: 200 mm (min.), 1220 mm (max.) and length: 7,500 mm (max.)
